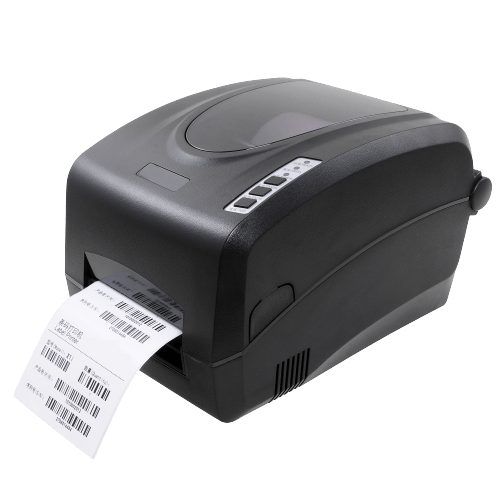

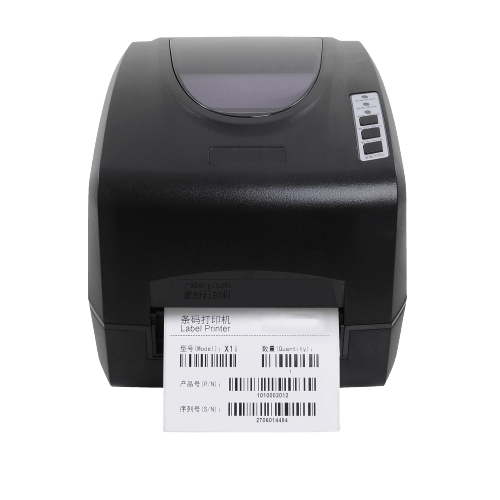

RF-HL-P113 UHF RFID Desktop Printer
Model: RF- HL-P113 UHF RFID Desktop Printer – Support metal tag
- Complete DLL, OCX, and other SDK, complete Windows, Linux, and Mac drivers, and make it worry-free.
- Support sense and print for RFID tags with different shapes and styles.

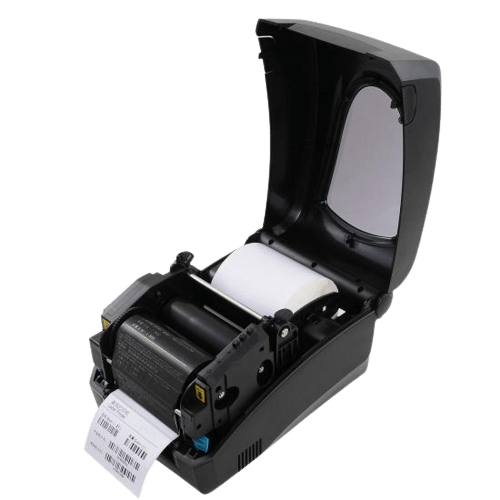

- Reasonable inner warehouse layout, very convenient for installation and replacement.
- Accommodate up to 300 meters of ribbons and 5-inch label paper rolls.
- 300DPI printing speed, up to 6 inches per second, saves more working time.
- The combination of compactness and durability meets the needs of users who require small space and high-intensity printing in large quantities.
| Printing method | Direct thermal & Thermal transfer |
|---|---|
| Resolution | 300 DPI (12dots/mm), 200DPI version optional |
| Maximum print speed | 6 IPS(152.4mm/s) |
| Maximum print width | 4.17″(106mm) |
| Maximum print length | 78.7″（2000mm） |
| Memory | 8 MB Flash ROM, 16 MB SDRAM |
| Media | Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper Width：4.6″（118mm） max.,0.8″（20mm）min. Supply roll: OD 5″(127mm) max., ID 1″(25.4mm) min. Thickness: 0.06～0.5mm (0.002″～0.02″), including liner |
| Ribbon | Wax, Wax/Resin, Resin Ribbon roll: OD 2.75″(70mm) max. with ID 1″(25.4mm) core or ID 0.5″(12.7mm) core Max width: 110mm; Max length: 300M |
| Media sensor | Adjustable reflective & Transmissive |
| Bar Code | Types 1D Barcode: Code 39， Code 93， Code 12 8， Codab ar， EAN-8/13/ 12 8， Interleavee 2 of 5，UCC-128，UPC A/E 2 and 5 add-on, etc. 2D Barcode: Data Matrix, MaxiCode, PDF417, QR, etc. |
|---|---|
| Interfaces | USB 2.0, RS232 |
| Power rating | 24 VDC, 2.0 A |
| Weight | 2.62KGS |
| Dimensions | W208 x D310 x H195 mm |
| Operation environment | Temperature: 32° F ~ +104° F (0° C ~ 40° C) Relative humidity: 5% -noncondensingnsing |
| Storage environment | Temperature: -40° F ~ +140° F (-40° C ~ 60° C) Relative humidity: 5% - 8non-condensing |
| Options | RJ45 network card, peeler. |
| Air Protocols | ISO/IEC18000-6B, 6C / EPC C1Gen2 C2GEN2 optional |
| Frequency | 865~868 Mhz |
