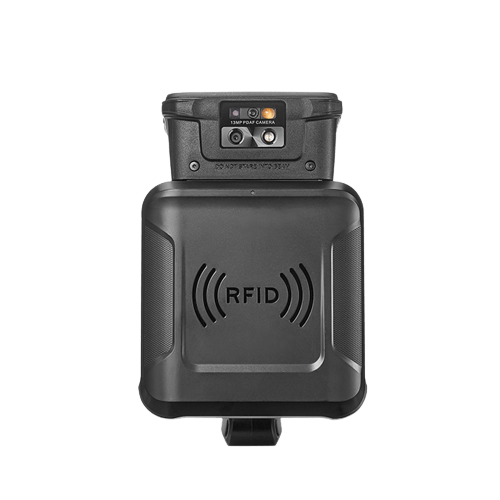

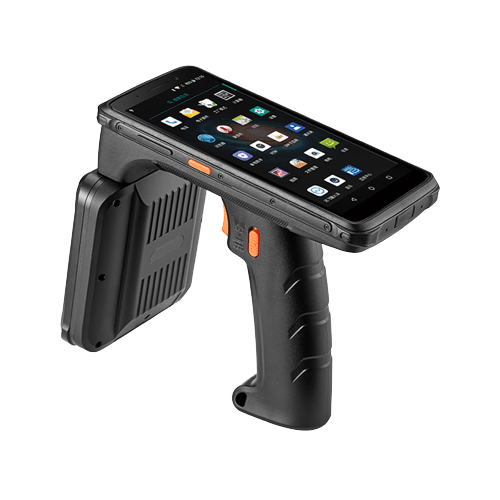

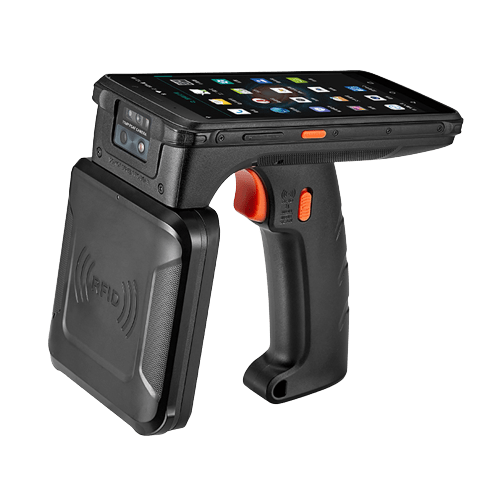

RF-HL UHF RFID Handheld Reader
Model: ESL- HL HY820 UHF RFID Handheld Reader
UHF RFID Handheld reader HY820 is one of the best-performing handheld terminals on the market. Integrated with the functions of Wi-Fi, Bluetooth, 4G, GPS/APGS/Beidou, our handheld RFID reader can achieve more flexible and accurate data collection. This mobile RFID reader can be easily used in various industries, such as highway toll stations, retail, logistics, etc.
- Excellent: Impinj E710 chip with UHF more than 15m reading distance.
- Powerful: Android 9.0 OS, MTK MT6765 Octa-core 2.3GHz
- Humanist: hand grip ergonomic design, lightweight
- Industrial IP65 rugged, 1.2M Drop to concrete, applying to kinds of severe environment
- Long Read Distance ＞ 15M
- Different communication interfaces (WiFi, Bluetooth, 4G, USB)
- Small Inventory App for direct use Free demo, sample code, SDK
- Support Tag search & data filtering
| Processor | MTK MT6762 Octa-core(4×A53 2.0Ghz, 4×A53 1.5Ghz) |
|---|---|
| OS | Android 9.0 |
| Memory | 64 GB ROM+4 GB RAM |
| Display | 5.46” HD 720×1440 |
| Standard I/O Port | Type-C USB |
| Expansion Slot | 1 Micro SD slot, 2 SIM Slots |
| Notification | Indicator LED, Speaker |
| WiFi | 802.11a/b/g/n (2.4G+5G) |
|---|---|
| WWAN | GSM(2/3/5/8), CDMA-EVDO: BC0 WCDMA: B1/B8, TD-SCDMA: B34/B39 TDD-LTE: B34/38/39/40/41 / FDD-LTE: B1/3/5/8 |
| Bluetooth | 5 |
| USB | Type C |
| Protocol | ISO/IEC 18000-6B, 18000-6C / EPC C1G2 / C2V2 |
|---|---|
| Reading Distance | 0~25m (According to Tag & Environment) |
| Antenna | Circular 4dBi |
| Frequency | EU: 865-868MHz (ETSI EN 302 208) |
| Camera | Rear: 13.0MP(PDAF)+Flash led Front: 5.0MP(FF) |
|---|---|
| Barcode | EEngine 2D Imager Barcode Scanner (Support 1D&2D code scan) |
| Positioning | GPS/AGPS/Glonass/BeiDou, with internal Antenna |
| Storage Temp. | -40°C ~ +85°C |
|---|---|
| Operating Temp. | -20°C ~ +70°C |
| Humidity | 5% RH ~ 95% RH (non-condensing) |
| Drop Spec. | 1.2M Drop to concrete |
| Dust & Water Proof | IP65 |
| Dimensions | Full set: 164mm(L)×99mm(W)×148.5mm(H) |
|---|---|
| Weight | N.W.: 630g |
| Battery Lithium | Polymer 10,000mAh(Rechargeable) |
| Accessories | Power Adaptor: Input AC100V ~ 240V / Output DC 9V 2A |
